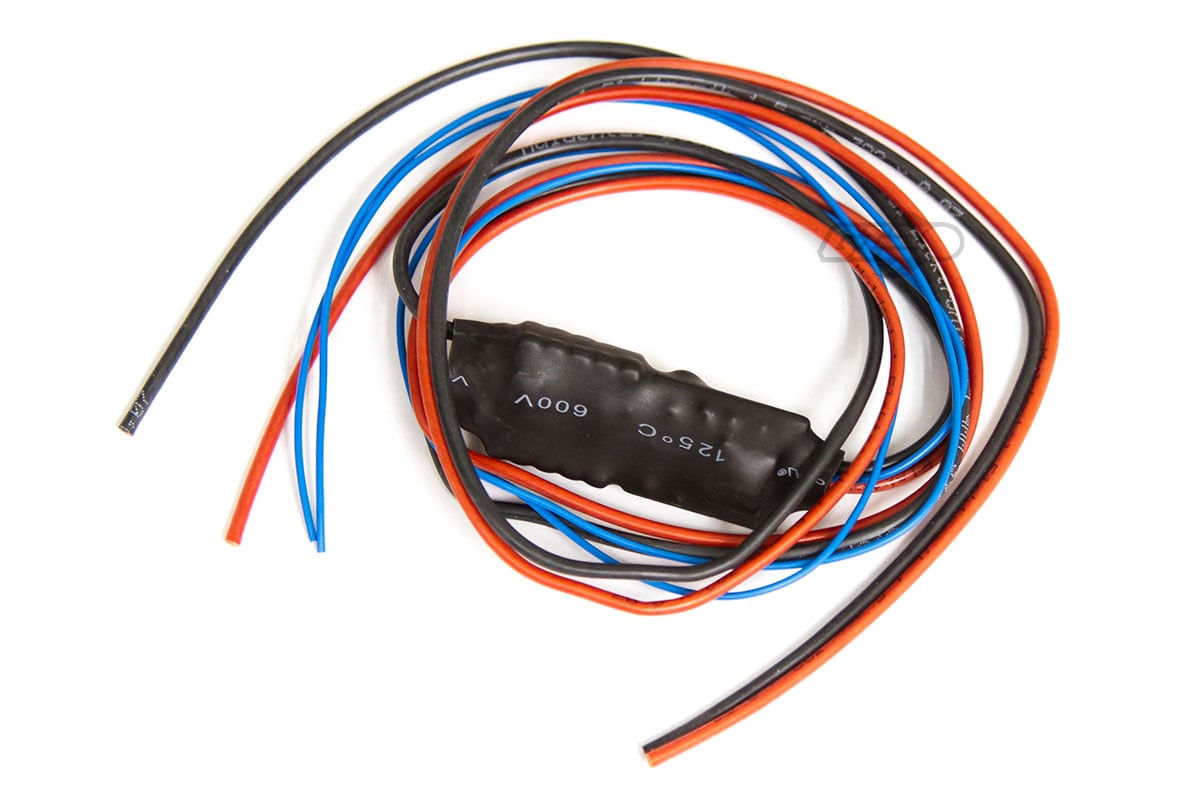

JAG Arms Extreme Active Braking MOSFET w/ Wiring for AEG
[R15D04][29096 / JAG FET AB X]
New to airsoft? Here are some safety tips for airsoft guns that we recommend following.
The JAG Arms Extreme Active Braking Mosfet is a professionally designed and manufactured mosfet with a plethora of features in the electronic processor, and wires on each side of the mosfet allow for use in a wide range of AEG styles. The wires are a high quality 1.5mm AWG16 power wires covered with silicon insulation with two AWG24 signal wires. The first mostfet feature is that it regulates current and voltage through the gun and extends battery life as well as prevent arcing across the trigger contacts during sustained single fire. Next on the list of features are 6 adjustable fire control settings, with programmable burst round count, as well as having a "pre-cocking" setting that stops the piston when compressed to provide instant trigger response on single shot firing. The FET also includes Active Braking, which allows the motor to stop at one full cycle of the gearbox without over spin occurring. Settings are changed via trigger pulls, and the system has a memory so settings are saved when a battery is disconnected.
This mosfet is designed to handle up to 14v NiMH batteries, and up to high discharge 14.8v lithium polymer batteries as well as an internal build with an M170 Spring, and has no cyclic rate of fire limit.Specifications:
Manufacturer: JAG Arms
Model: Extreme Active Braking Mosfet
Color: Black
Package Includes: Mosfet unit
Features:
- Motor Active Braking
- Current and Voltage regulation to AEG
- Modular Fire Control Settings
- Specifications
- Manufacturer: Jag Arms
