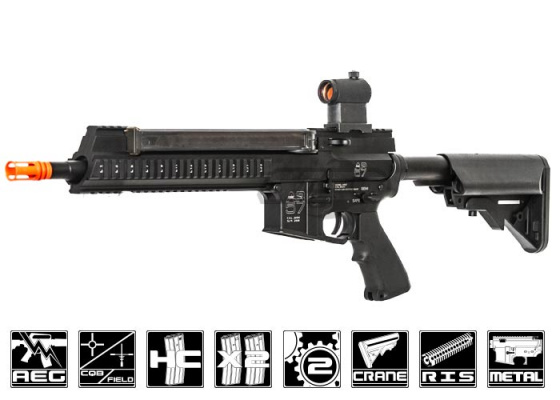

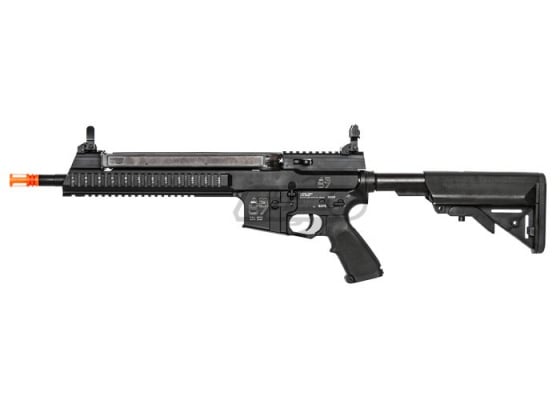

Echo 1 Fully Licensed AR57 Full Metal AEG Airsoft Gun
[P04D00][16457 / ECHO AEG AR57 (JP-85)]New to airsoft? Here are some safety tips for airsoft guns that we recommend following.
The Echo 1 Fully Licensed AR57 Full Metal AEG Airsoft Gun is sure to turn heads at the airsoft field. Taking the tried and true M4 ergonomics and combining it with the top loading magazines of the P90 and you've got the AR57. Echo 1 has gone out of their way to really making this gun as true to the life Rhineland Arms AR Five Seven as possible. One main advantage with the AR57 design is the one piece full upper receiver that includes a quad rail system. This design ensures that there is zero rail wobble from the upper receiver. The full quad rail system allow you to attach any mission critical tactical accessories needed. The pistol grip is rounded and more ergonomic than the standard A2 style grip. The included flip up iron sights mean that you'll always have a backup in case an optic goes down on the field.
However, Echo 1's quality doesn't stop at the externals. The internals of the AR57 are some of the best you will find stock. The modified version 2 metal gearbox is capable of housing any aftermarket upgrade parts available (Aside from the shell and air nozzle). A nylon fiber piston features a full rack of metal teeth, meaning that this gun is designed to last longer than other stock airsoft guns. The 8mm ball bearings also ensure smooth cycling while also increasing performance. A pre-installed sector clip ensures the best feeding possible, even once a powerful battery is installed. A solid 1 piece hop up unit also houses the 300mm barrel & preupgraded Madbull Bucking.
Overall, not only is this gun unique, but it is built to last as well.
Specifications:
Manufacturer: Echo 1
Model: AR-57
Material: Full Metal
FPS: 370-390
Magazine Capacity: 68 Rounds

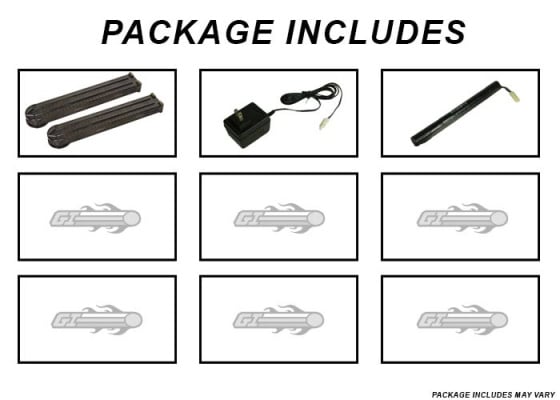

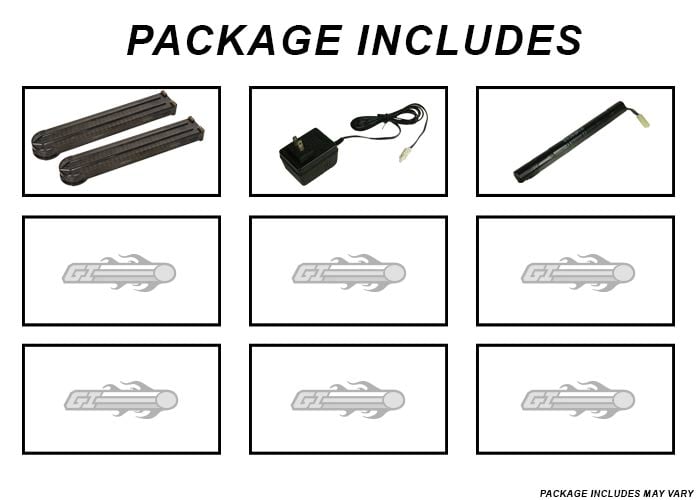

Package Includes: One (1) Gun, Two (2) Midcap Magazines, One (1) Battery, One (1) Charger
Features:
- Monolithic One Piece Rail System
- Utilizes P90 Magazines in a Unique Top Loaded Design
- Preupgraded Sector Clip, Piston, Air Nozzle, 8mm Steel Bearings, & Bucking
- M4 Ergonomic Design
- Full Metal Construction
- Includes Flip Up Iron Sights
- Ergonomic Pistol Grip
- Fully Licensed AR-57 Trademarks
- 30 Day Factory Warranty
Please Note:
- This product does NOT come with optics.
- Specifications
- Manufacturer: ECHO 1
- Muzzle Velocity: 370-390
- Magazine Capacity: 68 Rounds
- Fire Mode: Safe - Single - Auto
- Color: Black
- Material: Metal
- Battery Pack: Included
- Package Includes: One (1) Gun, Two (2) Mid Cap Magazines, One (1) Battery, One (1) Charger
- Stock Type: Crane Stock
- Handguard: Full Metal Rail System
- Sight: Flip Up Sights
- Overall Length Extended: 33.25"
- Overall Length Retracted: 29.75"
- Weight Empty: 7 lbs 5 oz
- Cylinder Head Type: Polycarbonate
- Cylinder Type: Metal M4
- Piston Head Type: Ported Polymer
- Piston Type: Polymer w/ Metal Full Rack Teeth
- Air Nozzle Type: Proprietary, Metal w/ Internal O-Ring
- Tappet Plate Type: Standard M4
- Spring Type: M120
- Spring Guide Type: Metal
- Bushing Size: 8mm
- Bushing Type: Bearings Steel
- Gear Set Type: Steel Standard
- Switch/Wire Type: M4 Rear Wired
- Selector Plate Type: M4
- Cut Off Lever Type: Version 2
- Anti Reverse Latch Type: Metal Version 2
- Motor Type: Standard Torque Long
- Hop Up Type: Plastic 1 Piece Top Fed
- Inner Barrel Length: 300mm Brass
- Sector Gear Clip: Yes
- Fuse: Yes
- MOSFET: No
- Quick Spring Change: No
- External
- Primary Build Material: Metal
- Internal
- Gear Box: Modified Version 2
- Options
- Spring Release: No
At first glance, I thought this AR57 was pretty ugly. I wanted an AR that was different. I'm not a fan of m4 rifles and I thought this was a unique hybrid. It eventually grew on me and I bought one. I normally use a King Arms P-90, so I was able to use the same magazines instead of having to buy m4 mid caps.
I gotta say, this is a nice rifle! The two piece upper and lower receivers are metal and are rock solid. The gun also came with a 9.6v 1600 NiMh battery, standard wall charger and 2 68rd magazines.
At 415 fps, this gun was WAY to hot for field limits so I ended up putting an M110 spring and it brought it down to 375 fps.
After trying this out on the field, I found that magazine changes are a tad tricky. The mag release is very similar to the P-90 and releasing the mag is a breeze. Inserting a new mag is much more challenging. The front of the mags have to line up with the front post and the back has to be seated properly in order to feed. If the mag is slammed in too quickly, you can potentially miss the feeding lip and have to take the mag out and try again.
The m4 magwell can fit practically any mag you want (Pmags have a slight wobble) but will not feed the gun. The "feeding tube" for the m4 mag is sealed with plastic. You can only put a mag in it just for looks.
Oddly enough, I tried an ECHO 1 P-90 box mag. It clicks into place, but for some reason, the magazine release doesn't keep it in place. It popped out of place every single time I touched it. I found that a little unusual and it defeats the purpose of using m4 mags.
Overall, this was a great addition to my arsenal. This is definitely an intermediate weapon because of the minor amount of tech work and unusual magazine changes. Buy this gun if you want a challenge!
Pros:
PROs:
Full Metal
Pistol grip, stock, trigger guard, buffer tube, and lower receiver can be switched with other standard m4 parts
-14mm CCW Barrel threads
Metal flip up sights
2 68rd magazines
Battery and Charger
Better trigger response than a P-90
Cons:
CONs:
Requires tech work for field regulations
Mock charging handle sometimes comes loose, but can be tightened down
My particular crane stock battery compartment cover was melted together, but I had another stock anyway
Magazine changes are tricky
ECHO 1 P-90 Box mag doesn't work...
When I first bought the gun on a blitz sale I thought I was getting a pretty good deal and it turns out it was an awesome deal. When I took the gun out of the box I noticed it was a solid chunk of metal. There is absolutely no play on any parts of the gun besides the stock and a little mag wobble. The trades look to actually be engraved into the body and won't come off anytime soon. The exterior finish of the gun is a little rough I must admit it could be better. Also, the iron sights that come with this gun are a joke. But the included battery and midcaps fed and worked flawlessly though I would highly recommend switching it to deans adding a mosfet and running a 11.1v lipo. As I took the gun completely apart the inside of the gearbox seemed to have a tad to much grease but nothing major. Stock shimming could be a little better but it was decent for a stock gun. The hop up unit easily came apart and it was a breeze to install a different bucking and nub. The hop up can only be adjusted once the mag is removed from the top but once it is dialed in it absolutely will not move as it is quite stiff. The selector switch also moves freely and clicks into place nicely. The fake bolt on the side of the gun does wobble a little bit and if it gets loose it can be tightened down. I was able to rewire the gun to the mag well and use a large hollowed out m4 mag to store a large battery. When you insert a standard m4 mag there is a tremendous amount of play and wobble. This can be easily fixed buy apply soft Velcro to either the mag or the inside of the mag well to eliminate mag wobble completely. If you hollowed out a fat mag you could store a very large lipo battery.
Pros:
Great quality for the price I paid
Unique design
Easily rewired to the mag well
Sturdy trademarks
no trigger play
Good range and accuracy in stock form
Solid one piece outer barrel
Orange tip easily removed
Sturdy upper and lower receiver with no play
Comes with a battery
Comes with two midcaps
All parts are version 2 compatible besides the hop up unit, air nozzle and gearbox shell
Cons:
Not so great crane stock
Latch holding in mags could be stronger
Hollow hop up nub
Somewhat Rough exterior finish
The non functioning mag well has A LOT of mag wobble when inserting m4 mags and I mean A LOT!
Provided iron sights could be better
My first Airsoft Ar-57. It's a really great Airsoft gun, it's very accurate and good weight. Shooting from 50 feet away aiming for a cup of bottle.
Pros:
Accurate I can shoot 100 feet away.. I can almost use this as sniper with a scope 4x20
Unique
Durable
Railings on the sides
Cons:
Less ammo
The crosser isn't accurate, I have to aim at the bottom of the crosser to make it accurate
I bought a scope that recommended by gi on the page with Ar-57.don't get those Ncstar is loses and wiggle around a lot.
|
Is it threaded barrel
Is it 14 mm threaded barrel
3460 days ago Kevin H
0
0
(I have this same question)
Staff Answer:
Yes 3404 days ago 0
0
|
1 answers 1 asked |
|
What kind of hop up does it have | 0 answers 2 asked |
|
Can I add | 0 answers 1 asked |
|
What can I do | 0 answers 1 asked |
|
What spring does it use | 0 answers 1 asked |
|
Mag slot
On the lower reciver why is there a magazine slot is it just for looks or can it be used
3488 days ago corey c
0
0
(I have this same question)
Staff Answer:
That would be an ejection port on the real AR57, but it does not serve a purpose on the airsoft version other than for aesthetics 3488 days ago 0
0
|
1 answers 1 asked |
|
How much do the mags hold?
whats the capacity of them. and are the high or mid caps
3542 days ago Jordon M
0
0
(I have this same question)
Staff Answer:
Magazine Capacity: 68 Rounds as stated in the specification 3540 days ago 0
0
|
1 answers 1 asked |
|
Can you lower the Fps to 350
I was wondering about this because I like to play indoor in the winter.
3552 days ago Randy T
0
0
(I have this same question)
Staff Answer:
Yes, this gun uses a standard version 2 gearbox that will allow for a standard spring change. <br><BR>Keep in mind that any modification to the gun will void Airsoft GI/Manufacturer warranties. 3551 days ago 0
0
I was wondering about this because I like to play indoor in the winter.
3552 days ago Randy T
0
0
(I have this same question)
Staff Answer:
Yes, this gun uses a standard version 2 gearbox that will allow for a standard spring change. <br><BR>Keep in mind that any modification to the gun will void Airsoft GI/Manufacturer warranties. 3551 days ago 0
0
|
2 answers 1 asked |
|
Iron sights
Does this come with iron sights or do I need to find some
3579 days ago Ryan C
0
0
(I have this same question)
Staff Answer:
It comes with them 3578 days ago 0
0
|
1 answers 1 asked |
|
Threads?
Does this gun have threads?
3824 days ago Douglas T
0
0
(I have this same question)
Staff Answer:
It should have 14mm counter clockwise threads 3823 days ago 0
0
|
1 answers 1 asked |
|
will a high torque motor work in this?
I have an M100 spring in this and was wondering if there are any compatable long high torque motors. Thanks
3914 days ago Joe S
0
0
(I have this same question)
Staff Answer:
A long-shaft high torque motor should work. 3911 days ago 0
0
|
1 answers 1 asked |
|
how long are the rails? | 0 answers 2 asked |
|
will a mosfet burst wizard fit in this?
Will a mosfet burst wizard fit inside the included crane stock, or would you have to rewire to a hollow M4 mag?
3921 days ago Joe S
0
0
(I have this same question)
Staff Answer:
It should fit. 3918 days ago 0
0
|
1 answers 1 asked |
|
What spring should i use to bring down the fps?
I want to use it in cqb
3934 days ago SUSAN A
0
0
(I have this same question)
Staff Answer:
An M100 Should bring the FPS down sufficiently. 3932 days ago 0
0
|
1 answers 1 asked |
|
Can this utilize M4 mags in the M4 mag slot?
I wanna know.
3949 days ago Samuel P
0
0
(I have this same question)
No
3666 days ago
Ryan C
0
0
I wanna know.
3949 days ago Samuel P
0
0
(I have this same question)
Staff Answer:
Yes. Standard M4 magazines will fit where the m4 magazine on a standard AR-15 platform go. Keep in mind, that in the real-steel version of this gun, the AR-15 magazine well is where the brass ejects, so having a magazine there will defeat any realism. 3949 days ago 0
0
|
2 answers 4 asked |
|
Is an M4 upper reciever compatible with this lower?
Specifically can I slide a G&G combat machine upper receiver onto this and use it like a normal M4.
3949 days ago Dennis O
0
0
(I have this same question)
Staff Answer:
The AR-57 was not designed to have its upper receiver swapped. Compatibility with other upper receivers is unfortunately not guaranteed by Airsoft GI. 3949 days ago 0
0
|
1 answers 1 asked |
|
What battery does it use?
I want to know what battery it uses, it says a stick in the pictures but I saw on another site it was a butterfly type.
3950 days ago Michael P
1
0
(I have this same question)
Staff Answer:
It will come with a Crane Stock Nunchuck (Butterfly) style battery. 3950 days ago 1
0
|
1 answers 1 asked |
