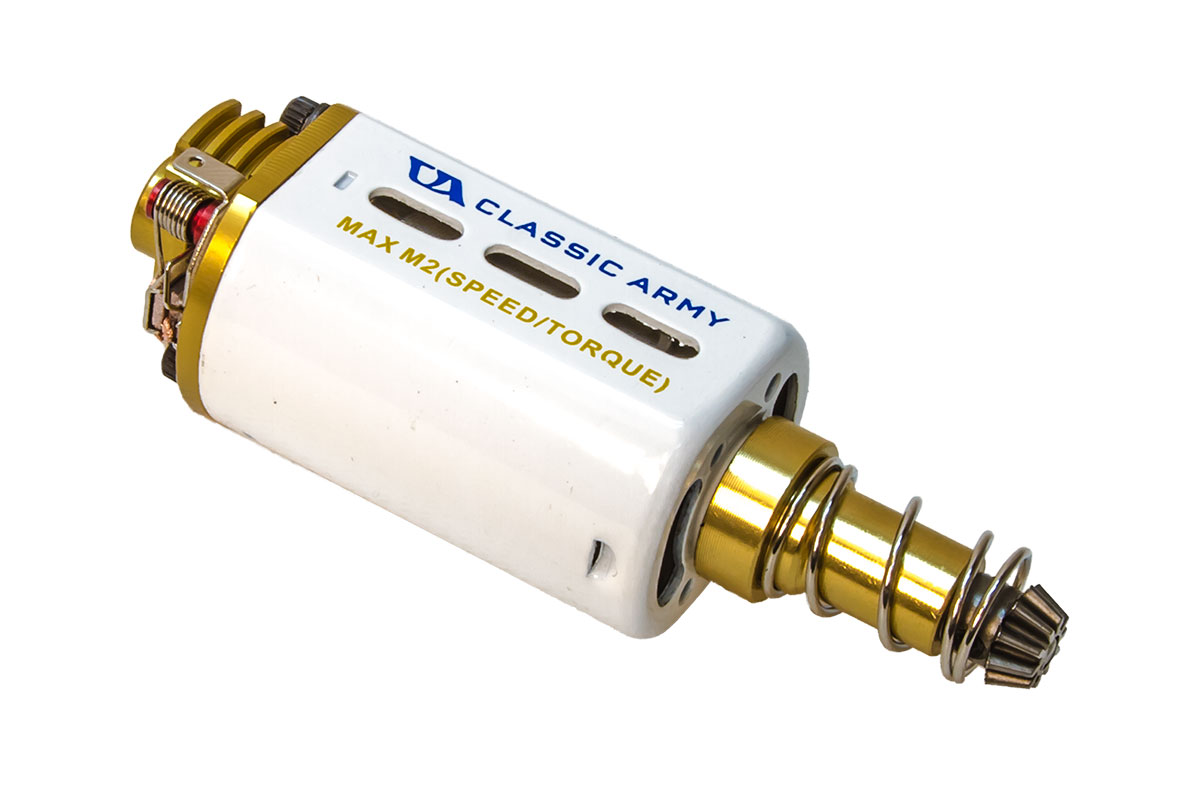

Classic Army Max M2 Speed & Torque Motor (Long)
[SF27][34601 / MAX-M2-L / CA-MAX-M2-L]
ADD TO CART
Also available at:
CA Walk In Store
Free Shipping for orders over $179 No Coupon neededNew to airsoft? Here are some safety tips for airsoft guns that we recommend following.
Since 1999, Classic Army has been developing and producing high quality airsoft products for the entire world to enjoy. Classic Army internal parts are no exception, the Max M2 motor is built to last and push the limits of your airsoft gun. Sustain the balance between high FPS and high rate of fire with the Max M2 motor. The CNC housing is precision produced to have no harming interference with the function of the motor. The motor utilizes high resistant neo magnets known for being one of the most rare powerful magnets in the world. This allows for smooth pinion rotation with extreme strength to power a gearbox.
Specifications:
Manufacturer: Classic Army
Model: Max M2 Speed & Torque Motor ( Long )
Package Includes: Motor
Features:
- CNC Housing
- High Resistance Neo Magnets
- D-Type Pinion Gear
- Increased Performance
- Long Type Motor
- Balance Between High Torque / High Speed Setups
Please Note:
- Professional installation is recommended. Improper use or installation of upgrade parts are 99% of the time the cause of failures of these items.
- Please thoroughly inspect any parts for defects before attempting installation. Due to the high possibility of damage from improper installation, we will not warranty parts after attempting installation.
- Specifications
- Manufacturer: Classic Army
see 4 reviews
| Write a Review
verified buyer
Y. ZHANG
|
2018-04-25
Product Information:
I used this motor to upgrade my classic army ARS4. Good motor with a lot of torque and not very high rpm. This motor will provide great trigger response, however I do not suggest this motor with high gear ratio. Standard classic army 21:1 ratio gear box will cause rate of fire to drop compared to standard motor. I swapped to 18:1 ratio and see a improvement in both trigger response and rate of fire. Now the gun fires 23 rps at 382 fps using stock spring on 11.1 LiPo battery. I did have to reshim the gears as the pinion used on the motor is slightly different geometry from the standard classic army pinion. I could not get the gear box to mesh correctly with adjusting motor height alone.
Pros:
High torque with strong neodymium magnets, improved trigger response, CNC end bell with ball bearing, great for DMR build.
Cons:
Lower rpm than stock motor, may need gear box reshim, pinion is glued with some kind of epoxy and very very hard to remove if you plan to swap pinion gear.
I used this motor to upgrade my classic army ARS4. Good motor with a lot of torque and not very high rpm. This motor will provide great trigger response, however I do not suggest this motor with high gear ratio. Standard classic army 21:1 ratio gear box will cause rate of fire to drop compared to standard motor. I swapped to 18:1 ratio and see a improvement in both trigger response and rate of fire. Now the gun fires 23 rps at 382 fps using stock spring on 11.1 LiPo battery. I did have to reshim the gears as the pinion used on the motor is slightly different geometry from the standard classic army pinion. I could not get the gear box to mesh correctly with adjusting motor height alone.
Pros:
High torque with strong neodymium magnets, improved trigger response, CNC end bell with ball bearing, great for DMR build.
Cons:
Lower rpm than stock motor, may need gear box reshim, pinion is glued with some kind of epoxy and very very hard to remove if you plan to swap pinion gear.
Y. ZHANG
|
2018-05-04
Product Information:
For Previous review, just learned that I got the first batch of motor in which classic army mixed up the M3 and M2 motors. I got the version that is actually a M3 torque motor in a M2 shell. This fully explains why the rate of fire reduced and the torque is very very high as a result.
Pros:
Heard the mix up have since been addressed by classic army so you should be getting the correct motor in future purchases
Cons:
didn't get the proper motor for my intended application I wanted
For Previous review, just learned that I got the first batch of motor in which classic army mixed up the M3 and M2 motors. I got the version that is actually a M3 torque motor in a M2 shell. This fully explains why the rate of fire reduced and the torque is very very high as a result.
Pros:
Heard the mix up have since been addressed by classic army so you should be getting the correct motor in future purchases
Cons:
didn't get the proper motor for my intended application I wanted
verified buyer
T. BROWN
|
2019-08-19
Product Information:
Very happy with this motor. It adds great trigger response in my VFC
Pros:
-CNC Endbell
-Neodymium Magnets
-Great for most general use builds
-increases RPS
-increases trigger response
-heating vents cut out in shell
Cons:
Very happy with this motor. It adds great trigger response in my VFC
Pros:
-CNC Endbell
-Neodymium Magnets
-Great for most general use builds
-increases RPS
-increases trigger response
-heating vents cut out in shell
Cons:
|
|
Does this work in a Classic Army Nemesis?
I don't know what motor type is used in the nemesis line of guns, and I'd love to know.
2266 days ago Chad H
0
0
(I have this same question)
Staff Answer:
Yes it will work in any AEG that takes long type motors. 2264 days ago 0
0
|
1 answers 1 asked |
|
|
What's the rpm on this motor?
What's the rpm on this motor?
2416 days ago Figueroa A
0
0
(I have this same question)
Staff Answer:
It's an 18 TPA motor. 2415 days ago 0
0
|
1 answers 1 asked |
|
|
Motor Question
How many TPA is this motor?
2430 days ago Terry B
0
0
(I have this same question)
Staff Answer:
20 TPA. 2429 days ago 0
0
|
1 answers 1 asked |
